1808SMD LED strip

1808 560 LED flexible strip

 LED Type: 1808SMD
LED Qty: 560per meter
Input Voltage: DC 24V /12V
CRI: Ra90
SDCM: 3step MacAdam ellipse
IP Rate: IP20, I62, IP65, IP67, IP68
Dimensions: 10x5000mm per roll
Control: 0-10V/1-10V/DMX/DALI/Triac
Certificate: CE, RoHs
Warranty: 5years

    Product Feature:

    P/N: FL1808-CV24/12560
    Brand: Epistar or branded chip
    Chip Wire: 99.99% purity(dia 1.0mm or above) gold wire
    Beam Angle: 120° Emitting
    Lifetime: LM80- 50000Hrs
    Operating Temp. -20 ~ 45°C
    PCB: 2Oz Cooper/ double-side FPCB
    Mounting: Imported 3M tape 300sle
    BIN: ONE BIN Only
    Luminaire in: CLASS II/III
    Packing: 300meter/Ctn. (68x26x28cm)

    Technical Dimension:


    Product Specification:

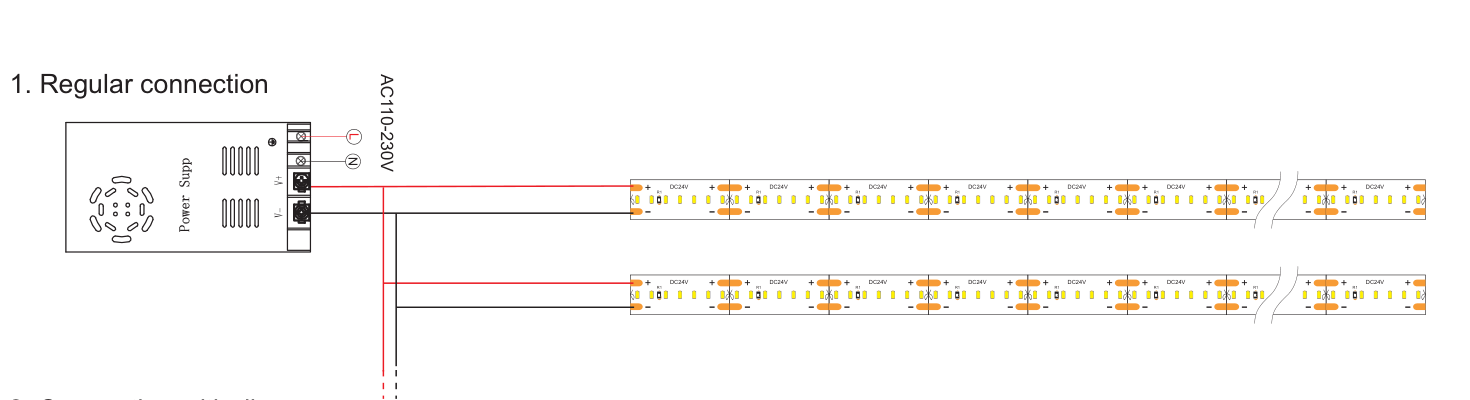

    LED Strip Solution:





    Note:
    1. free sample and quick delivery within 3working days
    2. Pls contact us for detail data sheet / High Quality Picture
    3. Customized led strip light is accepted.
    4. IES Document / Test Report available.
    5. Pls contact us for DWG/CAD drawing
