Linkable linear LS1213

-Super slim linear bar 12x13mm
-Spot Free seamless linkable
-Fast connection and solderless
- Multi installation: with clips and with magnetic
- LED for display, cabinet, funiture, shelf & cove


     for Shelf - Cabinet - Display - Cove  exclusive-designed


    Specification:
    Light Source Type: LED
    Voltage: 24V DC
    Operating Temperature: 32-113 °F (0-45 °C)
    Lamp Life: 50,000hr / 70%
    Available Color: 2700K, 3000K, 3500K, 4000K, 6000K.
    Efficiency: approx. 80lm/W Point Source
    IP Rating: IP 20 indoor use
    Finish: Aluminum + PC diffuser

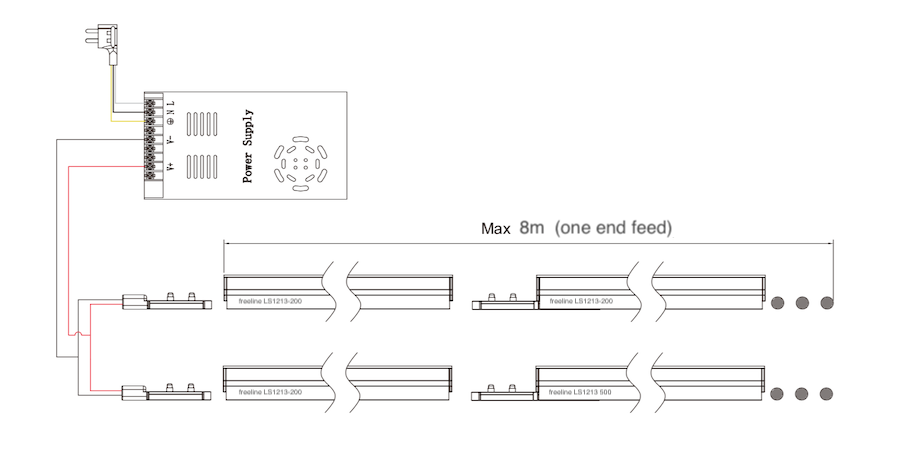

    Max Connection per Single Power Feed: 60W in one row (Single power feed)


    Parameter:

    P/N Size Power Voltage Lumen Color CRI IP Rate
    LS1213-100 L100xW12.5xH13.5mm 1.2W 24V 85lm 2700K 3000K 3500K 4000K 6000K Ra90+            3SDCM IP20
    LS1213-200 L200xW12.5xH13.5mm 2.5W 24V 186lm
    LS1213-500 L500xW12.5xH13.5mm 6W 24V 488lm

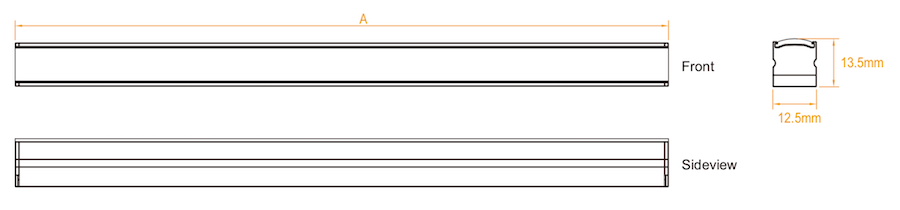

    Drawing:



    A: (length) 100mm, 200mm, 500mm optional
        Customized length, pls contact us for further details and offer.

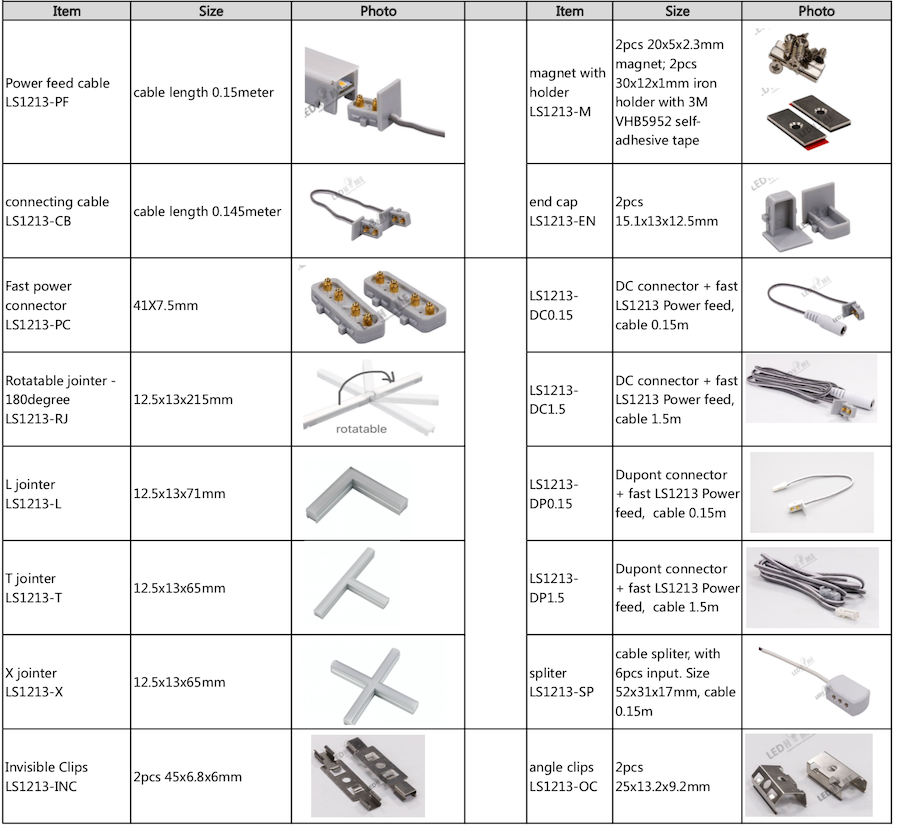

    Multi Accessories for choice:

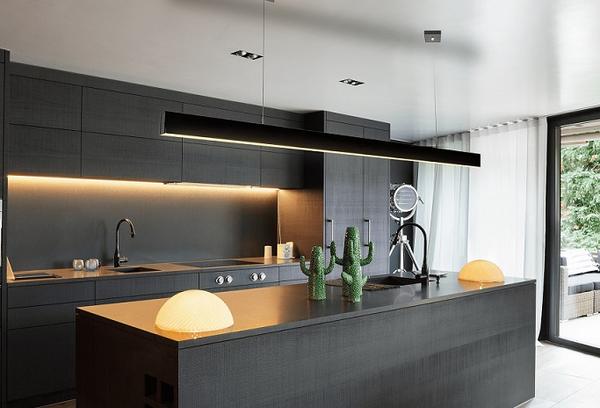

    Application:(nice choice for DIY under cabinet light)


    More details pls check below product Video:
