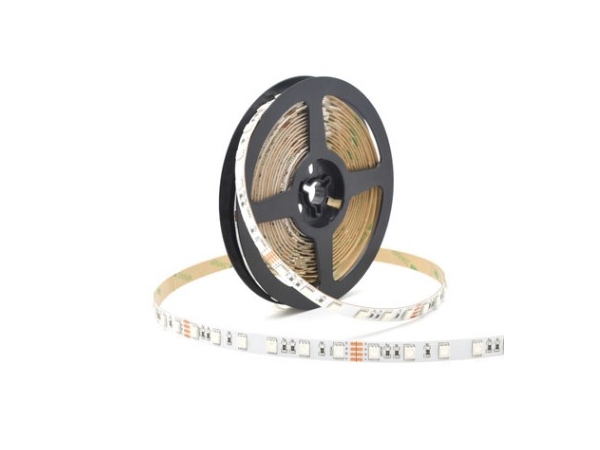

5050SMD LED Strip

5050 60leds/m RGB strip

 LED Type: 5050SMD
LED Qty: 60per meter
Input Voltage: DC 12/24V
Wattage: 14.4W/M
CRI: Ra80, Ra90
SDCM: 3step MacAdam ellipse
IP Rate: IP20, I62, IP65, IP67, IP68
Dimensions: 8/10/12x5000mm per roll
Cutting Unit: 3LED/50mm;6LED/100mm
Control: 0-10V/1-10V/DMX/DALI/Triac
Certificate: CE, RoHs
Warranty: 5years
     Product Feature:

    P/N: FL5050-CV12/24060
    Brand: Epistar or branded chip
    Chip Wire: 99.99% purity(dia 1.0mm or above) gold wire
    Beam Angle: 120° Emitting
    Lifetime: LM80- 50000Hrs
    Operating Temp. -20 ~ 45°C
    PCB: 2Oz Cooper/ double-side FPCB
    Mounting: Imported 3M tape 300sle
    BIN: ONE BIN Only
    Luminaire in: CLASS II/III
    Packing: 300meter/Ctn. (68x26x28cm)

    Technical Dimension:


    Product Specification:
    LED/M Power Voltage Width     Cut length Colour Length
    (two side Feed)
    60 14.4W/m 12/24V 8/10/12mm     6led/25mm RGB 5m/pcs 16.40ft/pcs
    60 14.4W/m 12/24V 8/10/12mm 66-88lm/w   6led/25mm RGB 5m/pcs 16.4ft/pcs


    Tips: other customized color or to build your customized Bin code system pls contact us further.
    LED Strip Solution:

    Note:
    1. free sample and quick delivery within 3working days
    2. Pls contact us for detail data sheet / High Quality Picture
    3. Customized led strip light is accepted.
    4. IES Document / Test Report available.
    5. Pls contact us for DWG/CAD drawing
