DTW CCT Strip

1808 476led CCT Light Strip (2pcs LEDs by team)

Item Type: CCT LED strip (2pcs LEDs by team)
P/N: FL1808-CV24476-10CCT
Brand: Epistar or branded chip
Chip Wire: 99.99% purity(dia 1.0mm or above) gold wire
Beam Angle: 120° Emitting
Lifetime: LM80- 50000Hrs
Operating Temp. -20 ~ 45°C
PCB: 2Oz Cooper/ double-side FPCB
Mounting: Imported 3M tape 300sle
BIN: ONE BIN Only
Luminaire in: CLASS II/III
Certificate: CE, RoHs
    Product Feature:

    Pin Code

    FL1808-CV24476-10CCT

    LEDs/m

    476

    Power/m

    38W

    Input voltage

    DC24V

    PCB Width

    12mm

    Working temperature

    25°C 〜45°C

    Beam angle

    120°

    CRI

    Ra95

    Lumen

    3495lm

    Color

    Tunable white: 6000-6500K/5000-5500K/3800-4200K/3300-3700K/2900-3100K/2600-2800K/2400-2600K

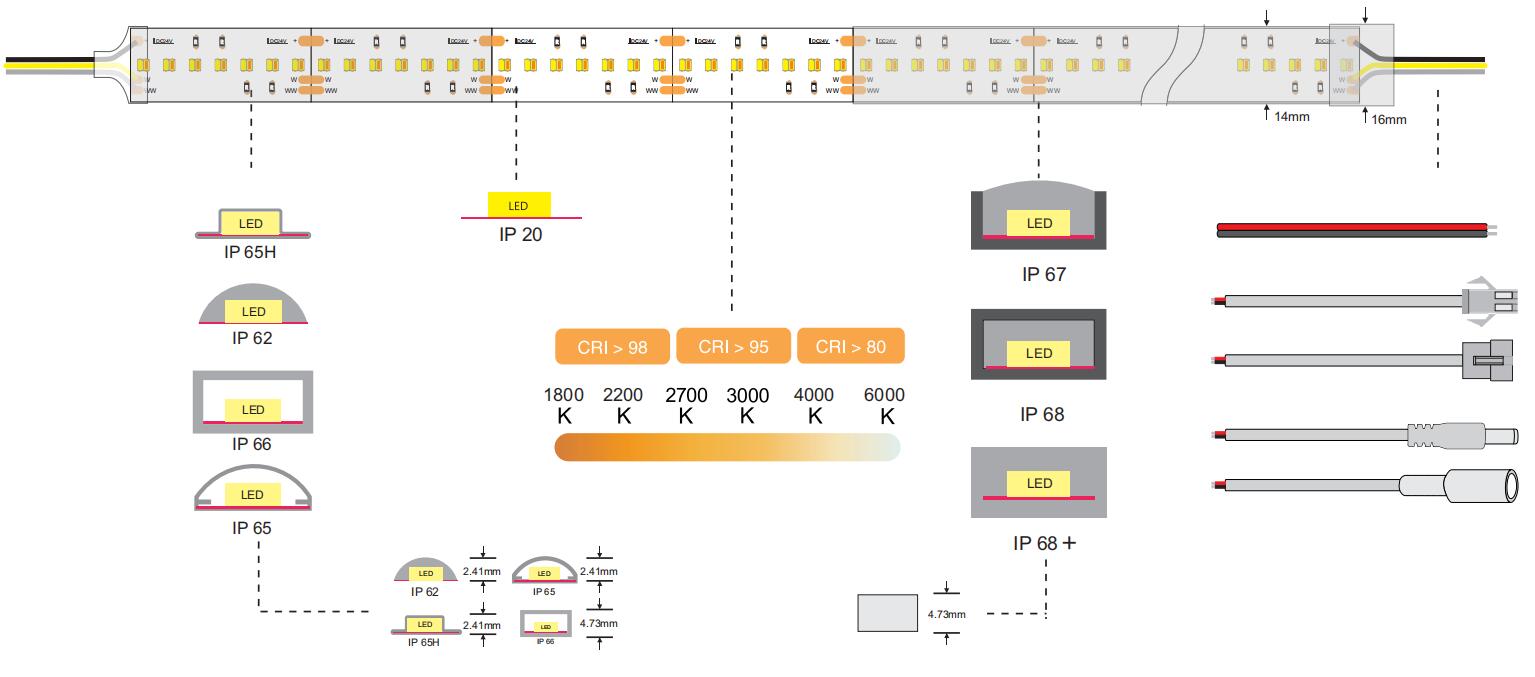

    Technical Drawing:



    Product Specification:



    LED Strip Solution:



    Note:
    1. Free sample and quick delivery within 3working days.
    2. Pls contact us for detail data sheet / High Quality Picture.
    3. Customized is accepted.
    4. IES Document / Test Report available.
    5. Pls contact us for DWG/CAD drawing.
