DIYNEON- Topview

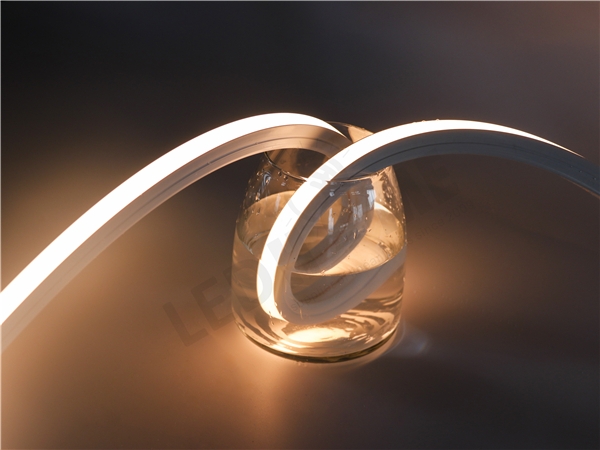

16x16mm Flexible silicon tube (Top view)

Dots-free & Uniform light silicon profile for 10mm PCB strip
1.Silicon one time Extrusion profile
2. Frosted surface,size:W16mm*H16mm
3.Regular 5meter/pcs; max 50meter per roll with wire inside
4.  Free Bendable, flexible silicon, extrusion profile
     Drawing Size


     Product Description

    Pin Code

    AP1616F

    Size

    16x16mm

    Strip PCB

    12mm

    Max Power

    10W/M

    Suggested LED Strip

    min 120LED/M Dots free

    Light Transmission

    65%

    Beam Angle

    180°

    View type

    Top view

    Certification

    RoHs, Reach, SGS


     Application


     Other Products

    Note:
    1. Free sample and quick delivery within 3working days.
    2. Pls contact us for detail data sheet / High Quality Picture.
    3. Customized is accepted.
    4. IES Document / Test Report available.
    5. Pls contact us for DWG/CAD drawing.
