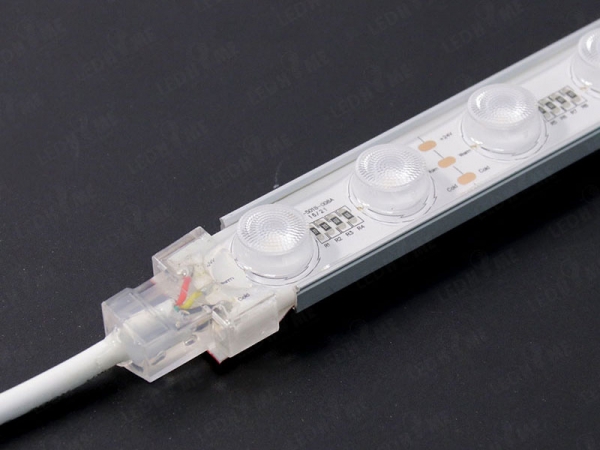

FlexGrazer- Flex Wall Washer

FlexGrazer-CV24036-CCT

flexible designed, suitable for more installation applications
Cuttable in different lengths with marked signs
High quality and high brightness LED source
Single Color, RGB, RGBW and Pixel RGB available
ONE BIN ONLY, good color consistency
TPU material, anti-UV
Max 10meter, two end feed
Min bending diameter: 100mm

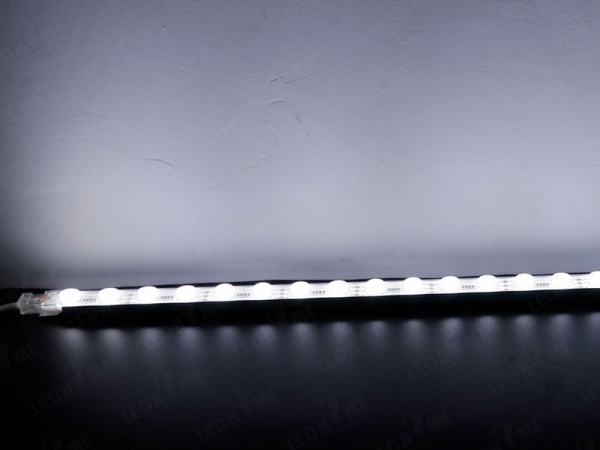

Up-down lighting designed for façade lighting
Beam angle 15°/ 30°/45°/60°/20*45°/ 15*60° asymetrical for different lighting design.

    Aurora - LEDHOME flexible wall washer rope is developed and improved from traditional aluminum heavy wall washer. New innovation on architecture lighting solution for facade lighting and landscape lighting, more economic cost and easiest installation way. Polyrethane encapsulated led flexible wall washer, it features as slender bendable strip and smaller size, then realize many irretular installation in coves, domes and so on. We can choose different beam angle 15°/ 30°/45°/60°/20*45°/ 15*60° asymetrical for different lighting design.


    Features
    --Adopting TPU, its resistant to yellowing, high temperature, corrossion, weak acid and alkali. And it features great flexibility.
    --PU glue potting, strong adhesion, good durability and high reliability
    --It can replace the traditional aluminum heavy wall washer or LED light bar due to its small size, light weight, flexible and easy to install.
    --A variety of beam angles are available, suitable for different environments/locations.
    --Low voltage DC24V, high safety choice.

    Luminaire   Size
    Item Reference: FW36GR-CCT
    Product: Flexible LED Wall washer
    Material: 100% TPU
    Light Emitting: Topview
    Beam Angle: 30/20*50°
    Max. Weight: 0.5 kg/meter
    Color: CCT
    IP Rate:  IP67 Outdoor
    Warranty: 3years

    Light Source   Optics
    Light source: 5050SMD Light emission: 30/20*50°
    Brand: Epistar chip Light controller: PMW/Triac/0-10Vdim/Dali
    LED Qty: 36LED/m Color temperature: CCT
    Power:(per meter) 15W UGR: >19
    Lumen output: (3000K)  1400lm CRI: /
    Efficency: 93lm/w Lumen Maintenance:     70,000 Hours L70 @ 25°C
    Max length: 32.8ft (10m)   90,000 Hours L50 @ 25°C
    Power Feed: one end feed   50,000 Hours L70 @ 50°C
    Deviation(SDCM) : 3step   70,000 Hours L50 @ 50°C
    Cable Out: end Cable Entry

    Electrical   Temperature Range
    Input Voltage(V): DC24V Installation:  -40°F to 134°F (-40°C to 55°C)
    Control gear type: Contant voltage DC24V driver Operating:   -25°F to 131°F (-25°C to 55°C)
    Ref: Meanwell Humidity: 0-95% non condensing
    Emergency: /

    Performance   Instalaltion
    Fire Proof: V1 Environment: IP67
    Tensile Force:   Type: Recessed/surfaced Mounted
    Inpact test:   Accessory: Clip, alu channel, adjustable bracket
    Silicon Purity: TPU Cut length: 55.55mm (2.18‘‘)
    SHORE:   Minimum Bend Diameter     3.94in (100mm) (Vertical Bending)
    Conductivity Index: 0.3-0.5 Dimension(mm): W0.72 x H0.37in (18.5x9.5mm)
    Certifacte: CE/ RoHs  Note:

    Application
    Extensively applied in Backlighting for signage letters, concealed lighting and advertisement sign lighting.
    Architectural decorative lighting,Archway, canopy and bridge edge lighting, Security lighting and Emergency

    Application
    Extensively applied in Backlighting for signage letters, concealed lighting and advertisement sign lighting.
    Architectural decorative lighting,Archway, canopy and bridge edge lighting, Security lighting and Emergency
