Outdoor Linear Light

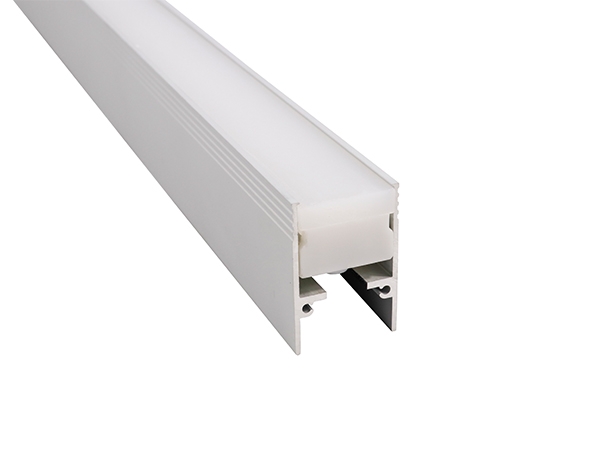

IP67 Inground Linear light APT03-AL3

 - IP 67  led profile
-  suit for indoor and outdoor decorations
-  maximum stand weight : 30kn
- aluminum profile+ 10mm thickness PMMA extrusion diffuser
- 6063 aluminum material , anodized
- UV resistance
- IP rate : IP67
- W30.6* H45 MM
    Product Features
    Luminaire
    Item reference: APT03-AL3
    IK Rating: Ik30 (must be installed as instructions)
    Product typology: Inground / Wall mounted/Ceiling Mounted
    Material (light body): PMMA (10mm thick)
    Material (housing): 6063 Anodized aluminum
    Light Color: 2700k/3000k/4000k/6000k
    Housing: Silver/Black/White
    Cable out: Out from two side bottom
    Cable length: 0.2m cable
    Certificate: CE/RoHs
    Warranty: 3years
    Light source
    Light source: Osram or Brand LED
    Lumen output: 1120lm/m
    Efficency: 70lm/w
    Power: 16 W/M
    SMD: 2835
    Deviation (SDCM) 3step MacAdam ellipse
    BIN: ONE BIN Only
    Luminaire in: CLASS II/III
    Optics
    Light emission: 120°
    Light controller type: 0-10V/1-10V/DMX/DALI/Triac
    UGR >19
    CRI: 80
    Light Decay: 2% @ 6000Hours
    Operating Temperature -25~60 degree
    Lifetime (Lm80) 50000 HRS
    Max running length: 10meter (two side feed)
    Electrical equipment
    Driver: External led driver
    Mains voltage (V): DC 24V
    Control gear type: CONSTANT VOLTAGE DRIVER
    Ref: MEANWELL

    Technical Dimension

    Item Width Hight Length Power
    APT03AL3-500 30.6mm 45mm 506mm 8W
    APT03AL3-1000 30.6mm 45mm 1006mm 16W
    APT03AL3-2000 30.6mm 45mm 2006mm 32W
    APT03AL3-2500 30.6mm 45mm 2506mm 40W
    APT03AL3-3000 30.6mm 45mm 3006mm 56W

    Drawing




    Note :

    1. free sample and quick delivery within 3working days
    2. Pls contact us for detail data sheet / High Quality Picture
    3. Customized led strip light is accepted.
    4. IES Document / Test Report available.
    5. Pls contact us for DWG/CAD drawing
