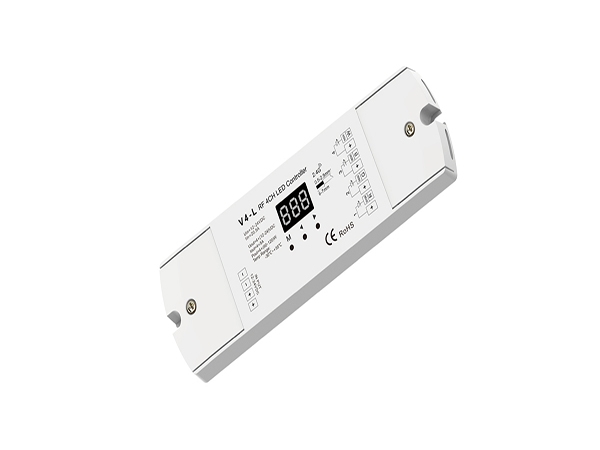

The LED controller V4-L / C4-L is a constant voltage or constant current RF receiver with numeric digital display, 4 channel output, which can be compatible with a variety of RF remotes to switch and dim RGBW, RGB, dual color or single color LEDs. Smooth dimming from 0.1% to 100% without any flickering can be very comfortable for human‘s eyes. Built-in 10 dynamic mode can create fancy lighting effects.



Feature

● PWM controller with digital display, can work under stand-alone mode or RF mode.

● 4 channel constant voltage or constant current output.

● Under stand-alone mode(no need remote), can set as 1ch dimmer, 4ch dimmer, dual color controller or RGB/RGBW controller.

● Under RF mode, full compatibility with a variety of single color dimming, dual color and RGB/RGBW remote.

● Smooth dimming and switch without any flickering.

● When control RGB/RGBW light, have 10 mode, include jump or gradual change style, adjustable speed.

● Adopt 2.4GHz wireless technology, remote distance up to 30m,

● One receiver can accept up to 10 remote control.

● Can be WiFi controlled by APP installed on IOS or Android mobile devices while working with WiFi-Relay controller. User can customize own RGB change mode list by APP for advanced function.

● High or low PWM frequency optional.

● Log or linear dimming curve optional.

● Work with power repeater to expand output unlimitedly.

The LED controller V4-L / C4-L is a constant voltage or constant current RF receiver with numeric digital display, 4 channel output, which can be compatible with a variety of RF remotes to switch and dim RGBW, RGB, dual color or single color LEDs. Smooth dimming from 0.1% to 100% without any flickering can be very comfortable for human‘s eyes. Built-in 10 dynamic mode can create fancy lighting effects.

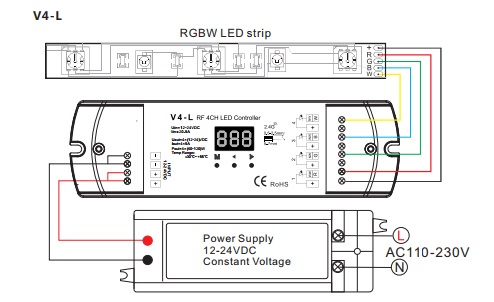

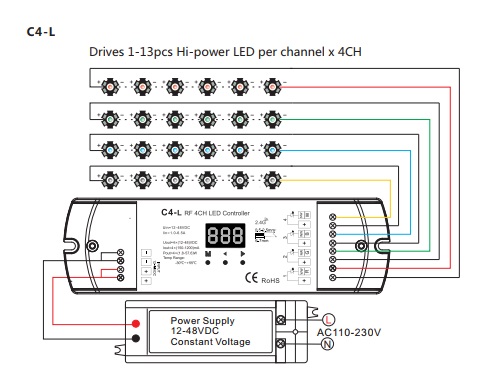

Wiring diagram









Safety information

1. The product shall be installed and serviced by a qualified person.
2. The product is non-waterproof. Please avoid the sun and rain.
3. Good heat dissipation will prolong the working life of the controller. Please ensure good ventilation.
4. Please check if the output voltage of any power supplies used complywith the working voltage of the product.
5. Ensure all wire connections and polarities are correct and secure before applying power to avoid any damages to the LED lights.
6. If a fault occurs please return the product to your supplier. Do not attempt to fix this product by yourself
