Long Length LED Strip

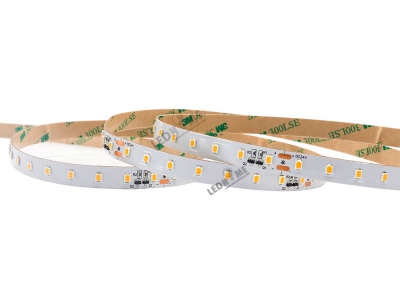

2835 120leds/m IC-built-in strip

LED Type: 2835SMD
LED Qty: 120 per meter (IC-built-in)
Input Voltage: CC24V
Wattage: 9.6W/M
CRI: Ra80, Ra95
SDCM: 3step MacAdam ellipse
IP Rate: IP20, IP62, IP65, IP67, IP68
Dimensions: 10x30000mm per roll
Cutting Unit: 6LED/50mm
Control: 0-10V/1-10V/DMX/DALI/Triac
Certificate: CE, RoHs
Warranty: 5years
    Product Feature:

    P/N: FL2835IC-CC24120-10W27
    Brand: Epistar or branded chip
    Chip Wire: 99.99% purity(dia 1.0mm or above) gold wire
    Beam Angle: 120° Emitting
    Lifetime: LM80- 50000Hrs
    Operating Temp. -20 ~ 45°C
    PCB: 2Oz Cooper/ double-side FPCB
    Mounting: Imported 3M tape 300sle
    BIN: ONE BIN Only
    Luminaire in: CLASS II/III
    Packing: 300meter/Ctn. (68x26x28cm)

    Technical Dimension:





    Product Specification:

    LED/M Power Voltage Width Lumen CRI Cut length CCT Length
    (two side Feed)
    120 9.6W/m CC24V 10mm 92-99lm/w 80 6led/50mm 2700K,3000K
    4000K,5000K
    6000K,6500K
    30m/pcs 98.4ft/pcs
    120 9.6W/m CC24V 10mm 76-82lm/w 95 6led/50mm 2700k,3000k
    4000k,5000k
    6000k,6500k
    30m/pcs 98.4ft/pcs


    Tips: other customized color or to build your customized Bin code system pls contact us further.


    LED Strip Solution:





    Note:
    1. free sample and quick delivery within 3working days
    2. Pls contact us for detail data sheet / High Quality Picture
    3. Customized led strip light is accepted.
    4. IES Document / Test Report available.
    5. Pls contact us for DWG/CAD drawing
