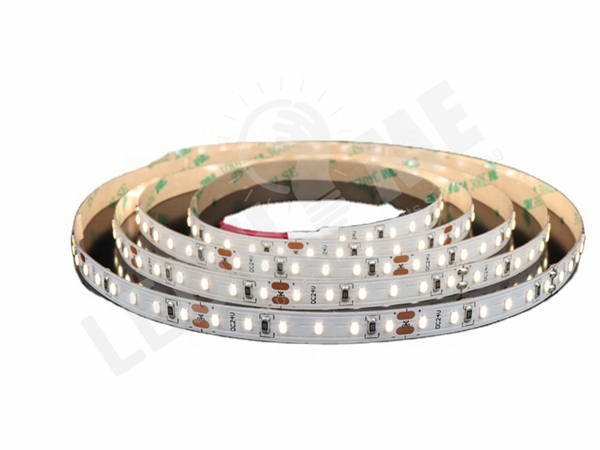

3014SMD LED Strip

3014 120led/m strip

LED Type: 3014 120led/m strip
LED Qty: 120per meter
Input Voltage: DC 12V/24V
Wattage:14.4W/M
CRI: Ra80, Ra90
SDCM: 3step MacAdam ellipse
IP Rate: IP20
Dimensions: 5/8x5000mm per roll
Cutting Unit: 3/25mm
Control: 0-10V/1-10V/DMX/DALI/Triac
Certificate: CE, RoHs
Warranty: 5years
    Product Feature:

    P/N:  FL3014-CV12/24120-5/8
    Brand: Epistar or branded chip
    Chip Wire: 99.99% purity(dia 1.0mm or above) gold wire
    Beam Angle: 120° Emitting
    Lifetime: LM80- 50000Hrs
    Operating Temp. -20 ~ 45°C
    PCB: 2Oz Cooper/ double-side FPCB
    Mounting: Imported 3M tape 300sle
    BIN: ONE BIN Only
    Luminaire in: CLASS II/III
    Packing: 300meter/Ctn. (68x26x28cm)

    Technical Dimension:
    Product Specification:
    LED Strip Solution:


    Note:
    1. free sample and quick delivery within 3working days
    2. Pls contact us for detail data sheet / High Quality Picture
    3. Customized led strip light is accepted.
    4. IES Document / Test Report available.
    5. Pls contact us for DWG/CAD drawing
