what is constant current IC Built in led strip

Time:2019-07-05 Views:181

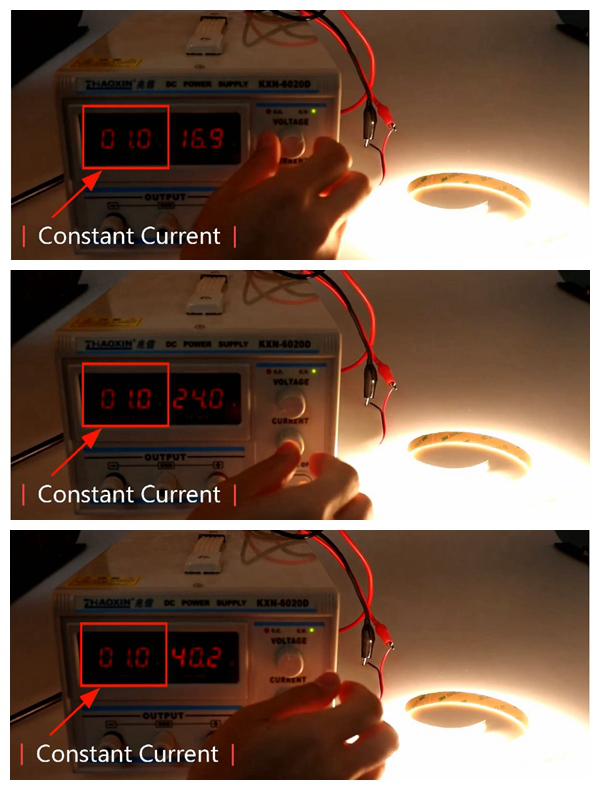

Checking the led strip, there is only led on the flexible FPC board. In each circuit of led, there is IC built inside the led, each IC will ensure each pcs led working in same current to achieve 100% same brightness for each led, same brightness from the begin to the end of led strip at max length 30meter if one end powered in with driver. below is our ledhome testing on the current and led strip working ability.even our voltage vibrate from 16v-40v, our strip still keeps in same current working and same brightness. that‘s the feacture of ledhome constant current ic built in led strip. you and your client could enjoy the advantage of this IC built in led strip, as your led strip will keep itself even your clients has adopted not good stable voltage led power supplier. and the choice of led power supplier seems is not a limitation just for 24v dc only.




Why choose ic built in led strip?
Why choose the strip without resistors?

1. Decrease the adventure of damaging the resistors if outside onto the PCB. much more stable working ability
2. Ensure each led working in same current for longer lifetime. With high precision current control, the built-in IC can stably output 10mA,15mA,20mA,25mA,30mA,35mA,40mA and 45mA. Different wattage requirements can be meet.
3. Same brightness on both ends even running long length (e.g. Length 30meter power in one side)
4. Cost saving for constant current led strip.
5. Wide choice for voltage: the LED strip can works well in wide input voltage: DC19V-DC40V, so you don‘t need to worry the bad power supply will shorten the life of the LED strip.
6. Flexible choice for your led driver from 12v-48v,any your 24v, 36v, 48v driver could work with our 12v ic built in led strip.
7. Built-in Constant Current IC can assure each LED working under same current even with fluctuant input voltage
8. max density 300led/meter, other choice: 60led, 80led,90led, 120led, 128led, 240led and 300led per meter.
9. 10meter without voltage drop, 15meter without voltage drop, 20meter without voltage drop, 30meter without voltage drop.
10.High Efficacy: 115lm/w – Ra >95. 150lm/w –Ra >80
11. Color temperature: 1800k-10000k available.
12. IP rating: non-waterproof IP20, IP62, IP65, IP67, IP68.




FLW-2835IC-24300-WW/WH (max  32.8ft/10meter/roll, power on both ends)
LED/M Power Voltage Width Lumen CRI Cut length CCT Warranty
300 24W/m 24V 12mm 110-120lm/w 80 6led/20mm 1800-10000K 5 years
300 24W/m 24V 12mm 80-90lm/w 90 6led/20mm 1800-10000K 5 years

FLW-2835IC-24240-WW/WH (max 65.6ft/20meter/roll, power on both ends)
LED/M Power Voltage Width Lumen CRI Cut length CCT Warranty
240 19.2W/m 24V 10mm 110-120lm/w 80 6led/25mm 1800-10000K 5 years
240 19.2W/m 24V 10mm 80-90lm/w 90 6led/25mm 1800-10000K 5 years


FLW-2835IC-24128-WW/WH (max 98.4ft/30meter/roll, power on both ends)
LED/M Power Voltage Width Lumen CRI Cut length CCT Warranty
128 11.52W/m 24V 10mm 140-150lm/w 80 8led/62mm 1800-10000K 5 years
128 11.52W/m 24V 10mm 110-120lm/w 90 8led/62mm 1800-10000K 5 years

FLW-2835IC-240120-WW/WH (max 98.4ft/30meter/roll, power on both ends)
LED/M Power Voltage Width Lumen CRI Cut length CCT Warranty
120 14.4W/m 24V 10mm 110-120lm/w 80 6led/50mm 1800-10000K 5 years
120 14.4W/m 24V 10mm 80-90lm/w 90 6led/50mm 1800-10000K 5 years

FLW-2835IC-36090-WW/WH (max 196.8ft/60meter/roll, power on both ends)
LED/M Power Voltage Width Lumen CRI Cut length CCT Warranty
90 10.8W/m 36V 10mm 140-150lm/w 80 9led/100mm 1800-10000K 5 years
90 10.8W/m 36V 10mm 110-120lm/w 90 9led/100mm 1800-10000K 5 years

FLW-2835IC-24080-WW/WH (max 98.4ft/30meter/roll, power on both ends)
LED/M Power Voltage Width Lumen CRI Cut length CCT Warrany
80 7.2W/m 24V 10mm 140-150lm/w 80 8led/100mm 1800-10000K 5 years
80 7.2W/m 24V 10mm 110-120lm/w 90 8led/100mm 1800-10000K 5 years

FLW-2835IC-24060-WW/WH  (max 131.2ft/40meter/roll, power on both ends)
LED/M Power Voltage Width Lumen CRI Cut length CCT Warranty
60 7.2W/m 24V 10mm 110-120lm/w 80 6led/100mm 1800-10000K 5 years
60 7.2W/m 24V 10mm 80-90lm/w 90 6led/100mm 1800-10000K 5 years
