Linear light for floor

IP67 Infinite inground LED linear light- APT1502

 - IP 67  led profile

-  suit for indoor and outdoor decorations
-  maximum stand weight : 24.2kn
- aluminum profile+ 10mm thickness PMMA extrusion diffuser
- 6063 aluminum material , anodized
- UV resistance
- IP rate : IP67
- W24.9* H44 MM
-Seamless joint without darkness. Endto-end for continuous light
- High weight pressure resistant, upto 3000kg driver over


    Product Features
    Luminaire
    Item reference: APT1502
    IK Rating: Ik24.2 (must be installed as instructions)
    Product typology: Inground / Wall mounted/Ceiling Mounted
    Material (light body): PMMA (10mm thick)
    Material (housing): 6063 Anodized aluminum
    Light Color: 2700k/3000k/4000k/6000k
    Housing: Silver/Black/White
    Cable out: Out from two side bottom
    Cable length: 0.2m cable
    Certificate: CE/RoHs
    Warranty: 3years
    Light source
    Light source: Osram or Brand LED
    Lumen output: 532 lm/m
    Efficency: 53.2 lm/w
    Power: 10 W/M
    SMD: 2835
    Deviation (SDCM) 3step MacAdam ellipse
    BIN: ONE BIN Only
    Luminaire in: CLASS II/III
    Optics
    Light emission: 120°
    Light controller type: 0-10V/1-10V/DMX/DALI/Triac
    UGR >19
    CRI: 80
    Light Decay: 2% @ 6000Hours
    Operating Temperature -25~60 degree
    Lifetime (Lm80) 50000 HRS
    Max running length: 10meter (two side feed)
    Electrical equipment
    Driver: External led driver
    Mains voltage (V): DC 24V
    Control gear type: CONSTANT VOLTAGE DRIVER
    Ref: MEANWELL


    Technical Dimension

    Item Width Hight Length Power
    APT1502-500 24.9mm 44mm 500mm 5W
    APT1502-1000 24.9mm 44mm 1000mm 10W
    APT1502-2000 24.7mm 44mm 2000mm 20W
    APT1502-2500 24.9mm 44mm 2500mm 25W
    APT1502-3000 24.9mm 44mm 3000mm 30W

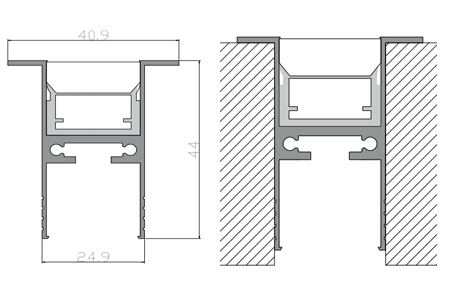

    Drawing



    Note :

    1. free sample and quick delivery within 3working days
    2. Pls contact us for detail data sheet / High Quality Picture
    3. Customized led strip light is accepted.
    4. IES Document / Test Report available.
    5. Pls contact us for DWG/CAD drawing






    Installation
