Whats 2110 LED Strip Advantages

Time:2018-12-18 Views:272

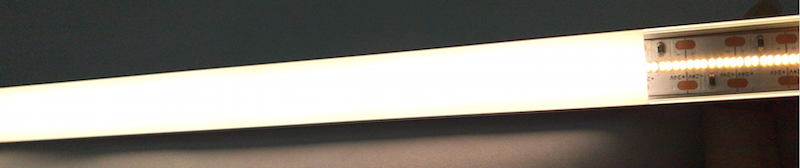

This is innovation LED Flexible Strip for 2110 SMD assembled LED based on 2216SMD LED strip, which has better working ability and stable quality in end user and installation. The 2110SMD LED strip is able to be bent for many times and won’t snap easily. The small body 2110SMD LED gives perfect lighting for aluminum LED linear lighting. Such as Easinghome 7x17mm U type LED alum profile.as small body 2.1x1.0mm super tiny LED, 2110SMD LED could be placed ensely, thus having concentrated lighting effect and higher power. Easinghome 700LED per meter 2110SMD is already dots-free for most of regular LED aluminum profile.

2110SMD small body enables for 60LED/120LED/180LED/240LED/280LED/300LED/350LED/700LED max per meter. Color is available from 1800K – 10000k. each C.T has one Bin code only from Refond LED factory. CRI 90+ could give life more natural to real sun day light, give color more beautiful and give true life to us. Easinghome LED is able to offer test report for each of your production and give good recomemdation on easinghome led aluminum profile and silicon neon flex, such as easinghome 4x10mm silicon flex works perfectly with 2110 180LED strip. Dots free and super slim lighting.

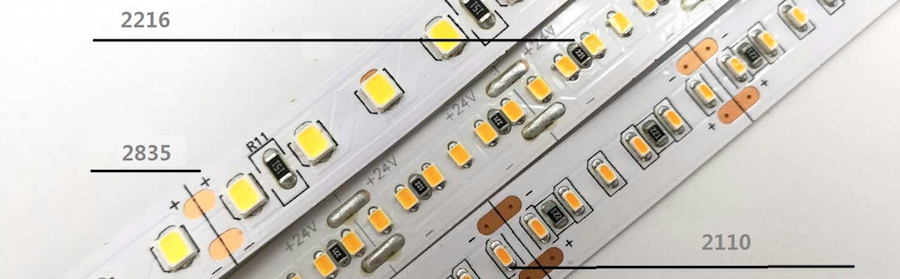

2110SMD LED flexible strip could be great choice to replace 2216SMD led strip, or 2835SMD, 3528SMD ect. Compared in some other reason.

2110SMD  - Small body but excellent performance

2110SMD Size: L2.1mm * W1.0mm Only. much smaller than 2835SMD, 3528SMD,3014SMD and 2216SMD;

2110SMD LED qty per meter:  60LED, 70LED,120LED , 180LED, 240LED, 280LED, 300LED, 350LED,max 700LED per meter in 10mm PCB
2110SMD LED Strip PCB: from 4mm to  12mm PCB single row

2110SMD LED Output: 9-11lumen per LED

2110SMD CRI : Ra >95   R9 >60

2110 LED Excellent color consistency: ONE BIN ONLY

2110SMD LED has Strong-soldering foot to PCB. not break when bend the strip or twist the strip

Advantages to choose 2110SMD Strip:

- 2110 assembled LEDs

-2110SMD ------Small body but excellent performance

- Size: L2.1mm * W1.0mm Only.

-Excellent color consistency: ONE BIN ONLY

- Rofond LED source

- SDCM<3

- Purity 99.99% golden wire

- 2 Ounces double side PCB

- 3M VHB adhesive tape for easy strong installation

-CRI : Ra >95   R9 >60

-Output: 9-11lumen per LED

- life time: 50000hours

- Uniform lighting, ideal for backlight, various aluminum profiles

- can be bent for many times and won‘t snap easily

- can meet application requirements such as being delicate, high brightness

- the strip can be cut to meet requirements of different length

-  with many leds being placed densely. the LED strip has concentrated lighting effect and high power

   max 700LED per meter in 10mm PCB

- the effect will be better if using together with alu bar

- 5year warranty

- waterproof IP20,IP65,IP67,IP68. The materials support silicone glue, silicone tube, easinghome alum led profile and  easinghome silicon NEON tube,
- Free sample from easinghome can be sent you any time upon your request.





EASINGHOME 2110 LED Strip Option:

1, 2110SMD 60 LEDS per meter, 5-6 lm per led,300Lm/M,Power 4.8W/M, PCB Width 8mm.

2, 2110SMD 120 LEDS per meter, 2.5 lm per led,600 lm/M, Power 4.8W/M  ,PCB Width 8mm.

3, 2110SMD 240 LEDS per meter, 2.5 lm per led, 1200 lm/M, Power 9.6W/M, ,PCB Width 8mm.

4, 2110SMD 280 LEDS per meter , 2.5 lm per led, 700 lm/M , Power 9.6W/M, ,PCB Width 4mm.

5, 2110SMD 300 LEDS per meter, 2.5 lm per led, 1500 lm/M,Power 12W/M, PCB Width 8mm.

6, 2110SMD 308 LEDS per meter, 2.5 lm per led, 1540 lm/M, Power 10.56W/M, PCB Width 8mm. CCT one Warm white led +one Nature white led or Cold white led on the one pcb.

7, 2110SMD 700 LED per meter, 2.5 lm per led, 3500 lm/M, Power 19.2 W/M ,PCB Width 8mm.

 more is coming on the way, pls do not forget to follow Easinghome LED Supplier in China.
